300W Battery Testing Machine For For Charging / Discharging / Voltage Testing

300W Battery Testing Machine For For Charging / Discharging / Voltage Testing

    • 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing
    • 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing
    • 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing
  • 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing

    उत्पाद विवरण:

    Place of Origin: china
    ब्रांड नाम: KingPo
    प्रमाणन: iso9001
    Model Number: BTS-60V5A

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1
    मूल्य: To be quoted
    पैकेजिंग विवरण: सुरक्षा दफ़्ती पैक या प्लाईवुड बॉक्स
    प्रसव के समय: 35 दिन काम
    Payment Terms: TT
    आपूर्ति की क्षमता: प्रति माह 3 सेट
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Constant voltage range: 0.3V~60V Current output range/channel: 0.025A~5A
    Power Output range/channel: 300W Current response time: maximum current rising time 20ms
    Data record frequency: 10Hz Single cycle working steps: 254

    BTS-60V5A Standard Power Battery Testing System , Battery Continuous charge ,Battery Forced Discharge



    Technical Parameter:

    BTS-60V5A Battery tester
    Model Number: BTS- 60 V 5 A Battery tester Material code: CT-4016 -60V5A - NTA - P
    items Parameter
    Input power AC 380V ±10% / 60Hz
    Input active power 6278 W
    resolution ratio AD:16bit;DA:16bit
    Input impedance ≥100kΩ
    voltage Constant voltage range 0.3V~60V
    Minimum discharge voltage 3V
    accuracy ± 0.1% of FS
    stability ± 0.1% of FS
    current Output range/channel 0.025A~5A
    accuracy ± 0.1% of FS
    Constant voltage cut-off current 0.01A
    stability ± 0.1% of FS
    Power Output range/channel 300W
    stability ±0.2% of FS
    time Current response time maximum current rising time20ms
    working step time range ≤(365*24)h/working step
    Data record Record data conditions Minimum time interval:100ms
    Minimum voltage interval:120mV
    Minimum current interval:10mA
    Record frequency 10Hz
    Charge Charge mode constant-current charge,constant-voltage charge,constant voltage and current charge
    cut-off conditions Voltage,current,relative time,capacity,-△V
    discharge Discharge mode constant current discharge, constant watt discharge
    cut-off conditions Voltage,current,relative time,capacity,-△V
    Impulse mode Charge Constant current,Constant power
    Discharge Constant current,Constant power
    Minimum impulse width 500ms
    Number of pulses one single pulse working step can support 32 different pulses
    Continuous switch of charge and discharge one pulse working step can continuously switch from charge to discharge
    cut-off conditions Voltage,relative time
    DCIR test Support customized picking up point to perform DCIR calculation

    cycle Loop test range 1~65535 times
    Single cycle working steps 254
    Loop nest Nested loop function,max 3 layers
    Protection ● Data Protection
    ● off-line test
    ● security conditions can be set including voltage upper/lower limit,current upper/lower limit and delay time
    ●anti reverse connection
    IP Protection Class IP20
    Channel feature constant current and voltage source ;double closed-loop;
    Channel control mode independent
    Current/voltage detection sampling four-wire connection
    noise <85dB
    data base MySQL centralized management of test datas
    upper computer communication mode TCP/IP
    Server disk Configuration 500GB
    Data output mode EXCEL 2003,2010,TXT
    Server operating system Windows 7
    communication interface ethernet
    Working environment requirement
    item parameter
    working temp. range 0℃~40℃(within25±10℃,ensured accuracy:precision drift0.005% of FS /℃)
    Storage temp. range -10℃~50℃
    Working environment relative humidity range ≤70% RH(no water vapor condensation)
    Storage environment relative humidity range ≤80% RH(no water vapor condensation)
    Clamp specification and size
    item parameter
    Clamp type Polymer clamp
    Pic 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing 300W Battery Testing Machine For For Charging / Discharging / Voltage Testing
    Alligator clamp Polymer clamp cable feet clamp
    Pictures are for reference only,real objects shall prevail.Choose one
    Cabinet size/unit(W*D*H)(mm) 30U(24”),730*600*1520

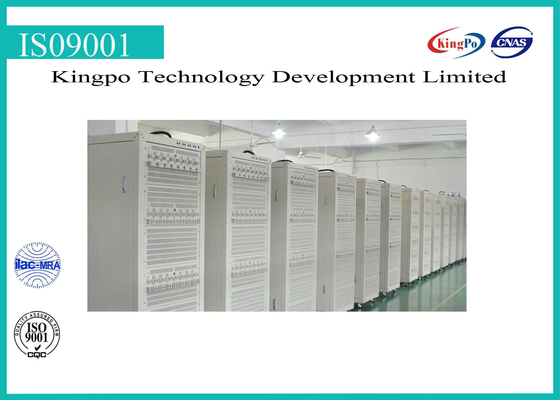

    Equipment pic
    Pictures are for reference only,real objects shall prevail.
    Auxiliary channel type Temperature,voltage
    Temp. range -25℃~110℃
    Temp. range ±1℃
    Temp. resolution ratio 0.1℃
    Voltage range -5V~5V
    Voltage accuracy ± 0.1% of FS
    Available auxiliary temp.channel/channel customized(248 channel at most)
    Available auxiliary voltage channel/channel customized(248 channel at most)
    Protaction condition of Auxiliary channel ● security conditions of Auxiliary channel can be set including temperature upper/lower limit,voltage upper/lower limit and delay time,voltage difference of single cell
    Note:incompatible with battery that has protection plate with soft start function.
