IPX9K IP Testing Equipment Pressure Test Chamber 800x800x800(WxHxD)Mm

उत्पाद विवरण:

Place of Origin: China
ब्रांड नाम: Kingpo
प्रमाणन: Calibration Certificate
Model Number: IPX9K

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1
पैकेजिंग विवरण: सुरक्षा दफ़्ती पैक या प्लाईवुड बॉक्स
प्रसव के समय: 25 कार्य दिवसों
Payment Terms: T/T
आपूर्ति की क्षमता: प्रति माह 3-5 सेट
अब से संपर्क करें

विस्तार जानकारी

size: 800x800x800(WxHxD)mm test angle: 0°,30°,60°,90°
spray hole: 4pcs max. water tank temperature: 85℃
sample table speed: 5±1r.p.m flow rate: 14-16L/min
हाई लाइट:

नमक स्प्रे परीक्षण के चैम्बर

,

rain test chamber

उत्पाद विवरण

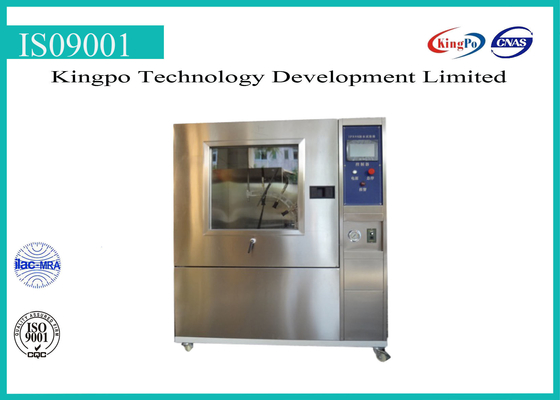

IPX9K High Temperature And High Pressure Jet Test Box





Description:



For shell protection grade IEC (IP code, strengthen test) of electric products inspection, in accordance with the DIN40050 standard related rules system. To provide auto parts, electrical and electronic industry, waterproof test design simulation of natural environment and human factors of the machine, our company also have conforms to the world of different specification of models available for customers to choose.



Specifications:



1. Product name:XR-IPX9K-500

2. Model:DIN40050-9 ISO20653

3. The test range:800x800x800(WxHxD)mm

4. The test space:0°,30°,60°,90°(Four locations)

5. The number of the spray hole:4pcs

6. High temperature water tank temperature can reach 85℃

7. The sample table speed:5±1r.p.m

8. Nozzle at 0 °, 30 °, 60 °, 90 ° water spray, and the measured object distance of 100-150mm, each position for 30 seconds.

9. Flow rate is 14-16L/min, the water pressure is 8000-10000k(81.5-101.9kg/c㎡)



Material structure:



Shell and inner box are all made of SUS304 stainless steel materials, test chamber upside for laboratory and control panel, bottom water pump installation (Italian high-pressure pump) and electromagnetic valve (imported from Italy), constant temperature and backwater double water tank (SUS304 stainless steel), turntable motor (panasonic motor) and slow transmission mechanism.

IPX9K IP Testing Equipment Pressure Test Chamber 800x800x800(WxHxD)Mm 0

IPX9K IP Testing Equipment Pressure Test Chamber 800x800x800(WxHxD)Mm 1
