UL 50E Dust tester

UL 50E Dust tester

एमओक्यू: 1
कीमत: To be quoted
मानक पैकेजिंग: सेफ्टी कार्टन पैक या प्लाईवुड बॉक्स
वितरण अवधि: 25 कार्य दिवस
भुगतान विधि: टी/टी
आपूर्ति क्षमता: प्रति माह 3-5 सेट
विस्तृत जानकारी
उत्पत्ति के प्लेस
चीन
ब्रांड नाम
kingpo
प्रमाणन
ISO 17025
मॉडल संख्या
केपी-UL50E8
प्रमुखता देना:

UL 50E dust test equipment

,

IP testing dust chamber

,

dustproof testing device with warranty

उत्पाद का वर्णन

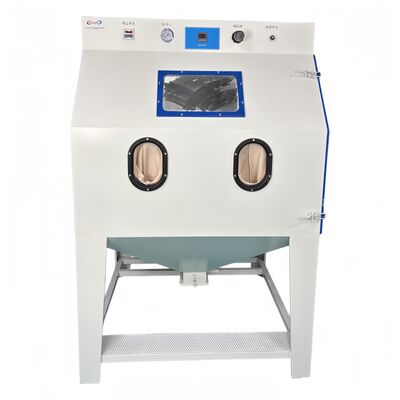

UL 50E Dust Tester
Professional dust testing equipment designed to meet rigorous industrial standards for enclosure protection testing.
UL 50E Dust tester 0
Product Overview
Meets the requirements of Clause 8.4.1.1 of UL50E-2020 standard for dust testing.
Technical Specifications
Complies with Clause 8.4.1.1 of UL50E-2020 with the following main parameters:
  • Sand blast gun, suction type with air ejector diameter of 4.7mm and nozzle diameter of 9.5mm
  • Spray pressure: 620-690kPa
  • Integrated pipe balance box for measuring internal and external pressures
  • Square screen with wire diameter of 50μm and wire gap of 75μm
  • Nozzle to shell distance: 305-380mm
  • Slaked lime powder usage controlled at 2.27kg/min with automatic recycling within the test chamber
  • Inner chamber volume: 1000×1000×1000mm
  • Includes 50kg of dry slaked lime powder
UL 50E Dust tester 1 UL 50E Dust tester 2 UL 50E Dust tester 3
