GX53 Lamp cap gauge | "NOT GO" Gauge For Checking Keyways in Caps GX53 | 7006-142F-1
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन Dongguan |
| ब्रांड नाम: | kingpo |
| प्रमाणन: | iso9001 |
| Model Number: | 7006-142F-1 |
भुगतान & नौवहन नियमों:
| Minimum Order Quantity: | 1 |
|---|---|
| मूल्य: | To be quoted |
| पैकेजिंग विवरण: | सुरक्षा दफ़्ती पैक या प्लाईवुड बॉक्स |
| प्रसव के समय: | 7 दिनों के काम |
| Payment Terms: | T/T |
| आपूर्ति की क्षमता: | प्रति माह 1000 पीसीएस |
|
विस्तार जानकारी |
|||
| ब्रांड नाम: | Kingpo | Model Number: | KP-7006-142F-1 |
|---|---|---|---|
| Material: | Hardness Steel | Standard: | IEC60061-3 |
| प्रमुखता देना: | Go No Go Gauge,Iec 60061 3 |
||
उत्पाद विवरण

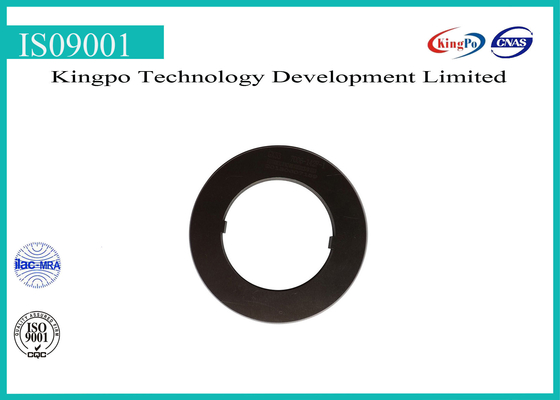

GX53 Lamp cap gauge | "NOT GO" Gauge For Checking Keyways in Caps GX53 | 7006-142F-1
PURPOSE: To check the maximum keyway width (dimension X) of caps GX53-..
TESTING: It shall not be possible to insert the cap into the gauge.
Related gauges for GX53
| 7006-142-1 "GO" AND "NOT GO" GAUGE FOR CAPS |
GX53 | PURPOSE: To check caps GX53-.. in the following respects: - the diameter of the individual pins (dimension A); - the combined displacement and diameter of the pins (dimensions A and D); - the length of the pins (dimension F1); - the recess length and diameter of the pins (dimensions F2 and E); - the maximum cap outline with respect to dimensions M, L1 and K. |
| 7006-142D-1 "NOT GO" GAUGE FOR CAPS |
GX53 | PURPOSE: To check the minimum cap diameter (dimension L1) of caps GX53-.. |
| 7006-142E-1 "GO" AND "NOT GO" GAUGE FOR CHECKING KEYWAYS IN CAPS |
GX53 | PURPOSE: To check caps GX53-1 in the following respects: - correct keyway position in relation to cap pins; - the minimum height and width of the keyway (dimensions W and X2); - to prevent the possibility of insertion of only one pin. |
| 7006-142F-1 "NOT GO" GAUGE FOR CHECKING KEYWAYS IN CAPS |
GX53 | PURPOSE: To check the maximum keyway width (dimension X) of caps GX53-.. |
